I wanted to share a service I’m hosting, but didn’t feel comfortable just leaving publicly accessible, even behind a reverse proxy. In the meantime I did not want to give access to my whole lan with a VPN, or redirect all internet traffic from a client thru my network. So the idea is to run a WireGuard instance on my OpenWRT router in a completely isolated zone (input, output and forward set to reject on firewall) and then forward a single port from the service host’s. Client is android, so using WG Tunnel and split tunnel just for the relevant app should not impair client’s network access. Initial tests seems to be ok, is there anything I may have overlooked? Please feel free to comment.

  • litchralee@sh.itjust.worksEnglish
    7·
    19 hours ago

    Let me make sure I understand everything correctly. You have an OpenWRT router which terminates a Wireguard tunnel, which your phone will connect to from somewhere on the Internet. When the Wireguard tunnel lands within the router in the new subnet 192.168.2 0/24, you have iptable rules that will:

    • Reject all packets on the INPUT chain (from subnet to OpenWRT)
    • Reject all packets on the OUTPUT chain (from OpenWRT to subnet)
    • Route packets from phone to service on TCP port 8080, on the FORWARD chain
    • Allow established connections, on the FORWARD chain
    • Reject all other packets on the FORWARD chain

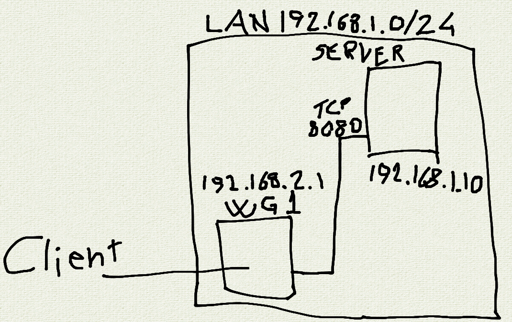

    So far, this seems alright. But where does the service run? Is it on your LAN subnet or the isolated 192.168.2.0/24 subnet? The diagram you included suggests that the service runs on an existing machine on your LAN, so that would imply that the router must also do address translation from the isolated subnet to your LAN subnet.

    That’s doable, but ideally the service would be homed onto the isolated subnet. But perhaps I misunderstood part of the configuration.
